Welcome to Gear C.A.M

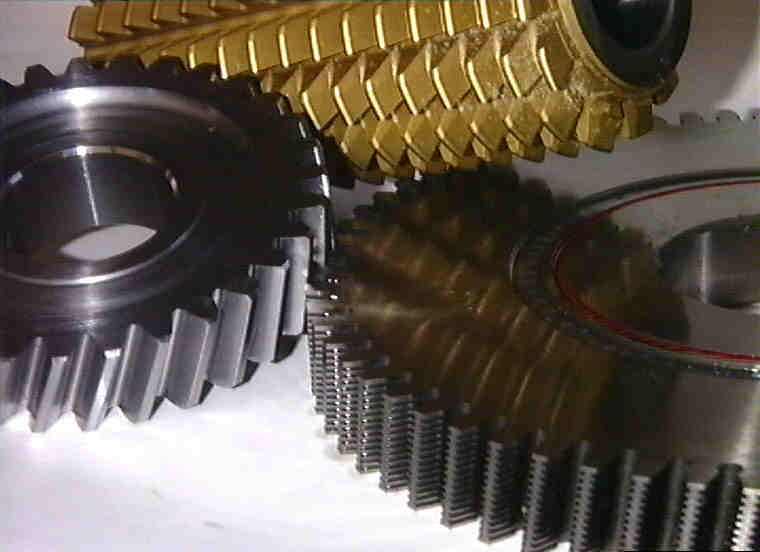

Gear C.A.M. Gear Design / Calculation Software for
Involute Spur & Helical gears, Racks, Pinions & Internal Gears, 3 Gear Trains,
Sun Planet & Ring gear sets and now BS3550 Splines.
Latest Version includes BS3550 Spline Calculations (Ver 10.0.1.55)
Check out the brand new Android section
This software will help you design all types of gearing as above for the
following :
-
New gear designs
-
For visualising existing designs
-
Adding a mating gear to a current gear set
-
To change ratios using existing centre's
-
Working out Span or Size over pin dimensions
-
Checking backlashes
and interferences
-
All your general gear questions
It is very useful for helping turn
existing Gear Data into more useful inspection or machine setting information.
-
For Planet gear sets all planet gears shown these are also shown in the *.DXF
outputs
-
Includes in Add Mod section find Pitch from Number of teeth & Canter Distance.
-
Additions Include Graphical Line Of Action and step rolling around the LOA.
-
Design data can be output in *. DXF format for use in AutoCAD etc. see the demo
section for examples.
-
Gear C.A.M. can also manage inspection standards as well as BS, Din, ISO or
AGMA tolerances
-

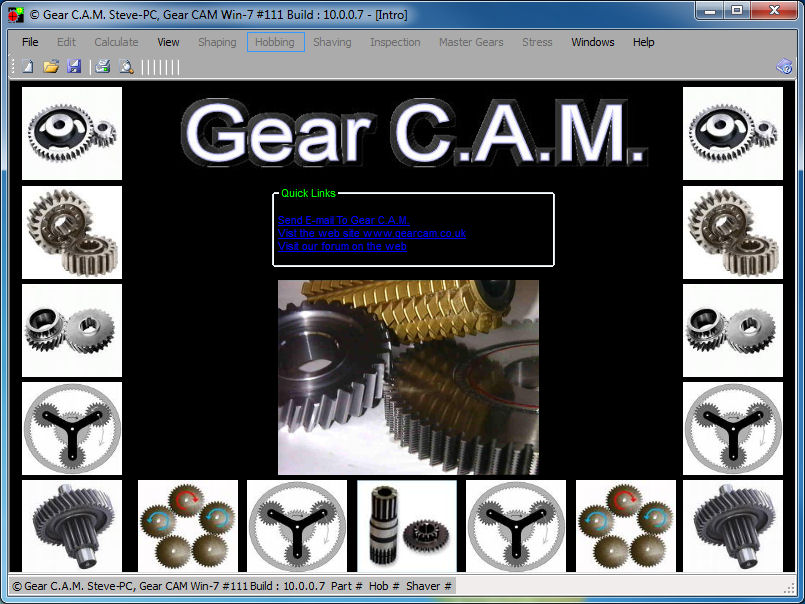

All designs can be seen visually as shown on the examples.
-
All output can be printed.
-
All inputs can be Imperial or Metric or any combination.
-
Data input is simplified through the software's ability to make many
calculations automatically, from as much or little information as the engineer
has available.
-
Gear C.A.M. has the ability to calculate Differential gears for Hobbing Helical
gears as well as gear trains for Churchill RH8 Hobbers.
-
A section is available to calculate cutting times for both Hobbing & Shaping.
-
The system will run on any standalone or networked PC.
For more information please send an e-mail to Gearcam

|
