Involute Gear Design

Single Gears, Gear pairs both of standard proportions & Addendum modified gears can be designed, Internal / External gear sets can also be designed.

Below are some examples of design capability's

Alternatively Download Acrobat .PDF examples

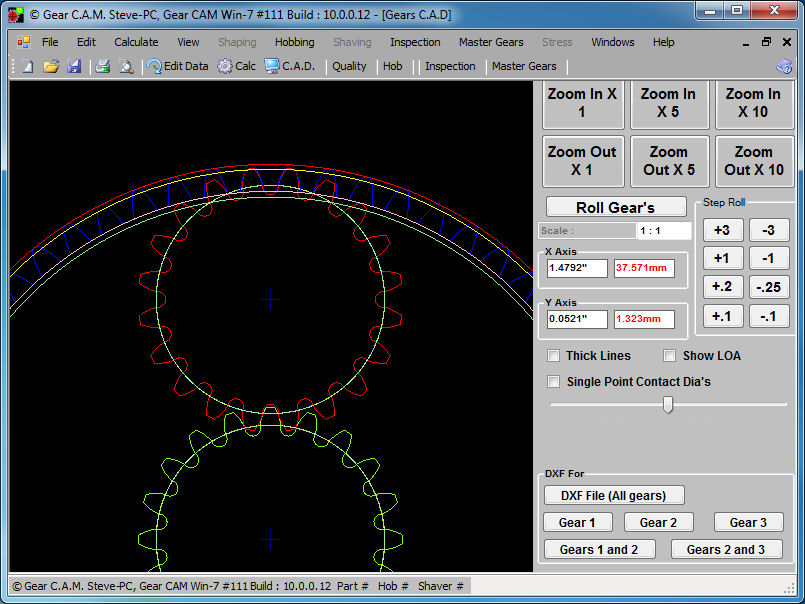

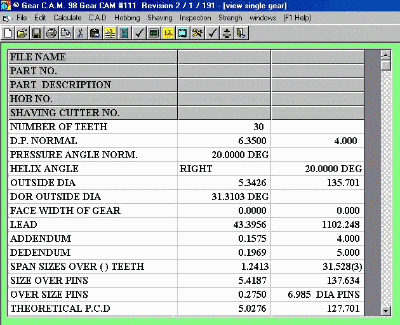

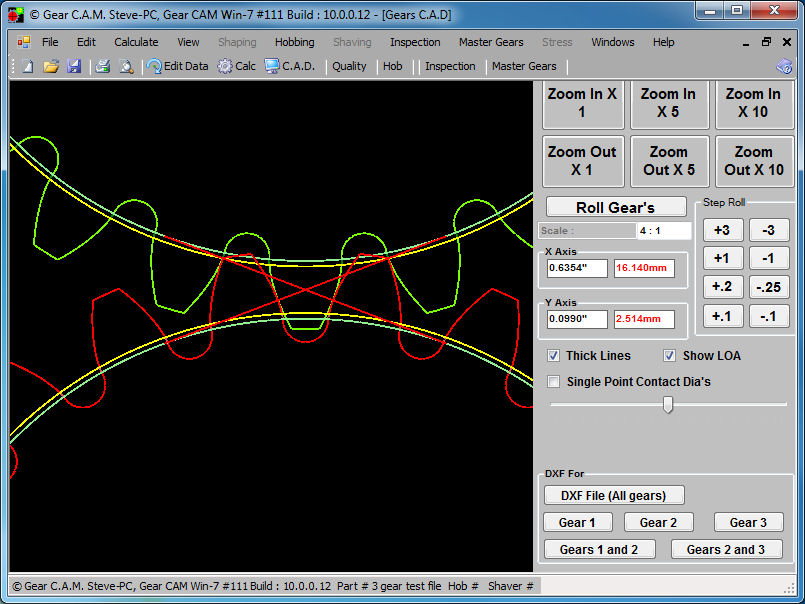

Gear Calculations                        C.A.D.                        C.A.D. With Gear Roll

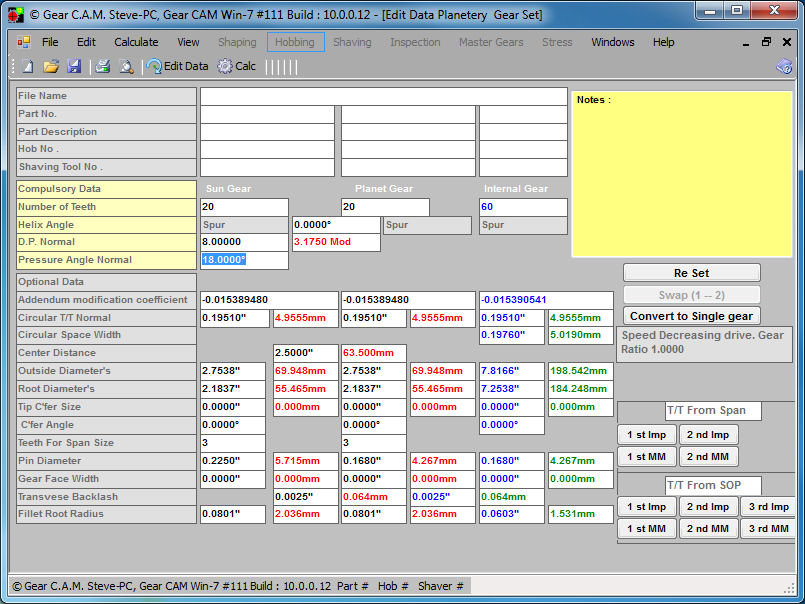

Latest version now includes Three gear calculations as per the example below
